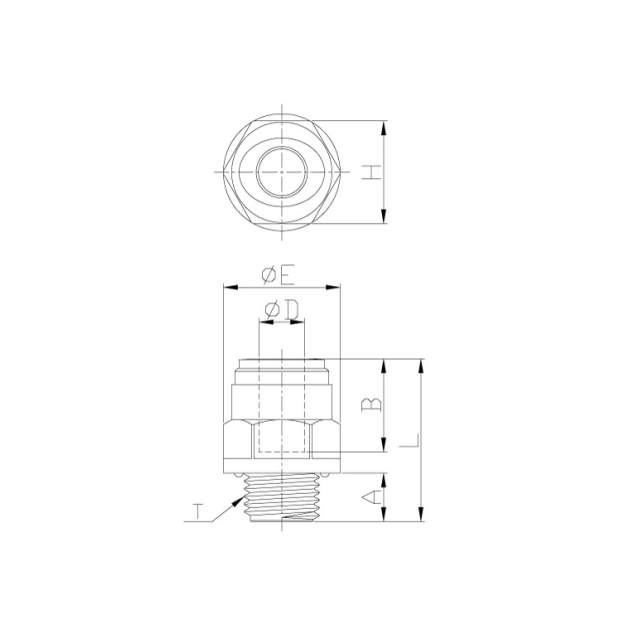

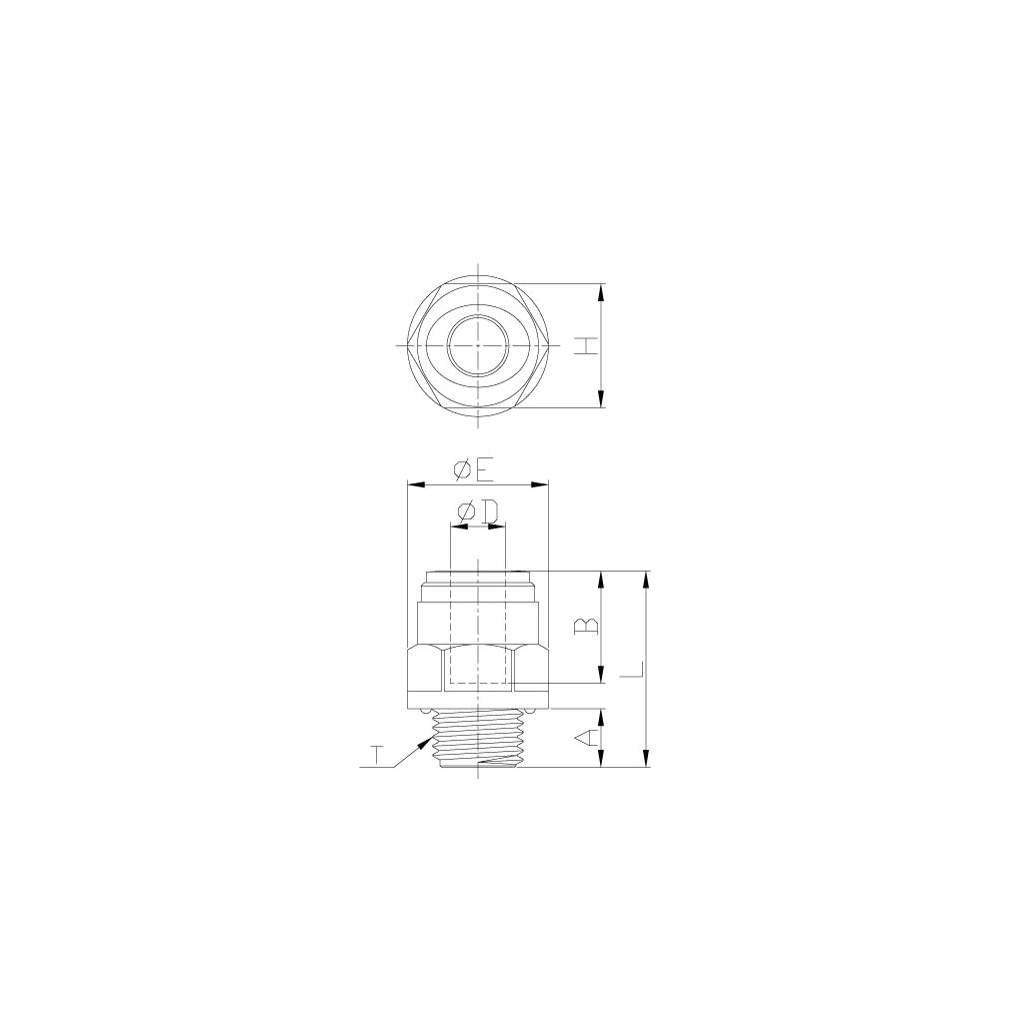

| Varianten: | ØD | T (BSPP) | A | B | ØE | H | L | Gewicht |
|---|---|---|---|---|---|---|---|---|
| HPC3/16-G01G | 3/16 Zoll | G1/8 Zoll | 6,0mm | 15,0mm | 16,5mm | 15,0mm | 24,1mm | 3,3g |
| HPC1/4-G01G | 1/4 Zoll | G1/8 Zoll | 6,0mm | 16,9mm | 16,5mm | 15,0mm | 24,1mm | 3,6g |
| HPC1/4-G02G | 1/4 Zoll | G1/4 Zoll | 8,5mm | 16,9mm | 20,5mm | 18,0mm | 24,1mm | 4,7g |
| HPC5/16-G01G | 5/16 Zoll | G1/8 Zoll | 6,0mm | 17,5mm | 18,5mm | 17,0mm | 27,0mm | 5,2g |
| HPC5/16-G02G | 5/16 Zoll | G1/4 Zoll | 8,5mm | 17,5mm | 20,5mm | 18,0mm | 28,5mm | 6,1g |
| HPC5/16-G03G | 5/16 Zoll | G3/8 Zoll | 9,0mm | 17,5mm | 24,0mm | 21,0mm | 26,5mm | 7,0g |
| HPC3/8-G01G | 3/8 Zoll | G1/8 Zoll | 6,0mm | 20,2mm | 21,0mm | 19,0mm | 30,9mm | 7,6g |
| HPC3/8-G02G | 3/8 Zoll | G1/4 Zoll | 8,5mm | 20,2mm | 21,1mm | 19,0mm | 30,9mm | 7,3g |
| HPC3/8-G03G | 3/8 Zoll | G3/8 Zoll | 8,5mm | 20,2mm | 24,2mm | 21,0mm | 26,4mm | 7,1g |
| HPC3/8-G04G | 3/8 Zoll | G1/2 Zoll | 12,5mm | 20,2mm | 28,4mm | 26,0mm | 29,9mm | 11,7g |
| HPC1/2-G03G | 1/2 Zoll | G3/8 Zoll | 9,0mm | 23,9mm | 27,0mm | 24,0mm | 34,4mm | 11,3g |
| HPC1/2-G04G | 1/2 Zoll | G1/2 Zoll | 12,5mm | 24,9mm | 28,4mm | 26,0mm | 32,9mm | 12,3g |
| Hersteller: | FLUIDFIT |
| Kategorie: | Fluidtechnik |
| Artikelnummer: | SVZ120100 |
