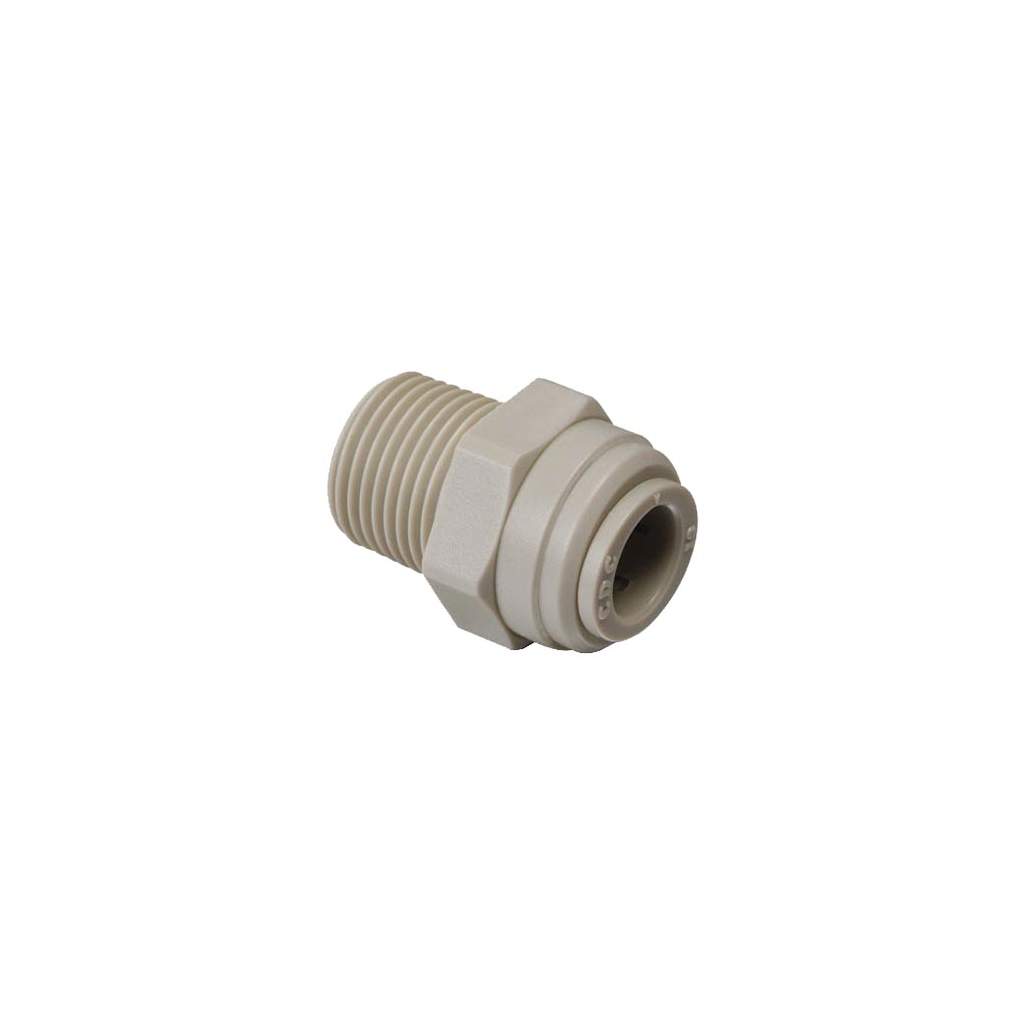

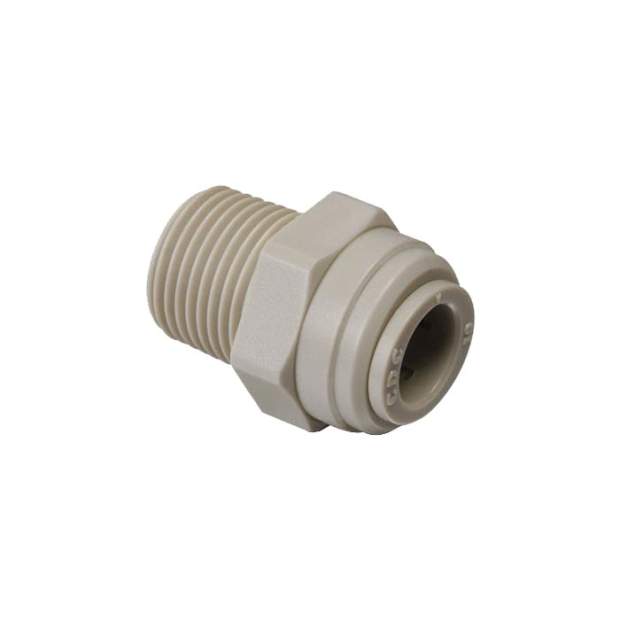

HPC-N Einschraub-Verbinder NPTF-Kegelgewinde zöllige Steckverbindung

0,91 €

Inkl. gesetzlicher Ust. zzgl. Versand

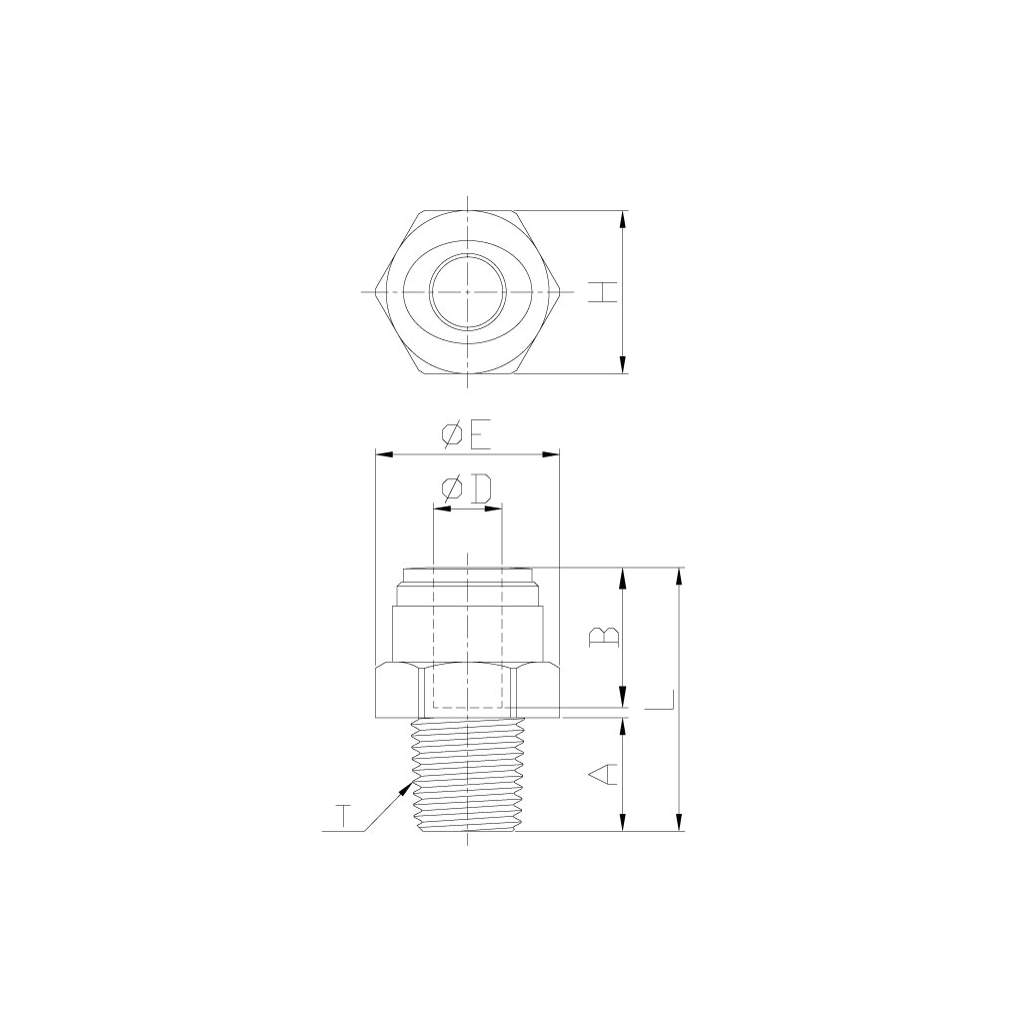

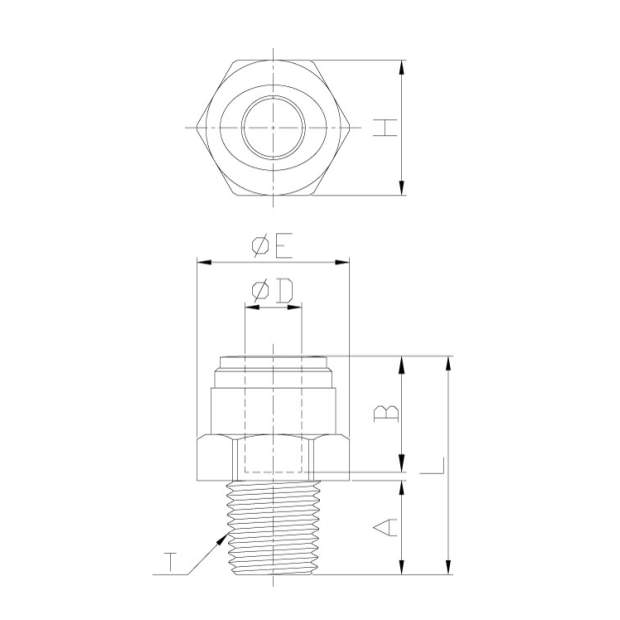

Varianten:	ØD	T (NPT)	A	B	ØE	H	L	Gewicht
HPC5/32-N01G	5/32 Zoll	N1/8 Zoll	9,1mm	14,7mm	17,8mm	15,8mm (5/8 Zoll)	22,2mm	3,2g
HPC5/32-N02G	5/32 Zoll	N1/4 Zoll	13,2mm	14,7mm	17,8mm	15,8mm (5/8 Zoll)	25,3mm	4,3g
HPC3/16-N01G	3/16 Zoll	N1/8 Zoll	9,1mm	15,0mm	17,8mm	15,8mm (5/8 Zoll)	22,4mm	3,1g
HPC3/16-N02G	3/16 Zoll	N1/4 Zoll	13,2mm	15,0mm	17,8mm	15,8mm (5/8 Zoll)	25,5mm	4,2g
HPC1/4-N01G	1/4 Zoll	N1/8 Zoll	9,1mm	16,9mm	17,8mm	15,8mm (5/8 Zoll)	27,0mm	3,9g
HPC1/4-N02G	1/4 Zoll	N1/4 Zoll	13,2mm	16,9mm	17,8mm	15,8mm (5/8 Zoll)	27,0mm	4,3g
HPC1/4-N03G	1/4 Zoll	N3/8 Zoll	13,8mm	16,9mm	21,4mm	19,0mm (3/4 Zoll)	26,1mm	6,1g
HPC1/4-N04G	1/4 Zoll	N1/2 Zoll	17,8mm	16,9mm	25,0mm	22,2mm (7/8 Zoll)	30,1mm	9,6g
HPC5/16-N01G	5/16 Zoll	N1/8 Zoll	9,1mm	17,5mm	21,4mm	19,0mm (3/4 Zoll)	28,4mm	5,6g
HPC5/16-N02G	5/16 Zoll	N1/4 Zoll	13,2mm	17,5mm	21,4mm	19,0mm (3/4 Zoll)	27,9mm	5,2g
HPC5/16-N03G	5/16 Zoll	N3/8 Zoll	13,8mm	17,5mm	21,4mm	19,0mm (3/4 Zoll)	26,5mm	6,0g
HPC5/16-N04G	5/16 Zoll	N1/2 Zoll	17,8mm	17,5mm	25,0mm	22,2mm (7/8 Zoll)	33,5mm	11,5g
HPC3/8-N01G	3/8 Zoll	N1/8 Zoll	9,1mm	20,2mm	23,0mm	20,6mm (13/16 Zoll)	30,4mm	6,7g
HPC3/8-N02G	3/8 Zoll	N1/4 Zoll	13,2mm	20,2mm	23,0mm	20,6mm (13/16 Zoll)	34,3mm	7,9g
HPC3/8-N03G	3/8 Zoll	N3/8 Zoll	13,8mm	20,2mm	23,0mm	20,6mm (13/16 Zoll)	29,9mm	7,5g
HPC3/8-N04G	3/8 Zoll	N1/2 Zoll	17,8mm	20,2mm	25,0mm	22,2mm (7/8 Zoll)	33,9mm	11,0g
HPC1/2-N03G	1/2 Zoll	N3/8 Zoll	13,8mm	25,1mm	27,4mm	24,5mm (31/32 Zoll)	38,4mm	11,7g
HPC1/2-N04G	1/2 Zoll	N1/2 Zoll	17,8mm	25,1mm	27,4mm	24,5mm (31/32 Zoll)	37,9mm	12,7g
