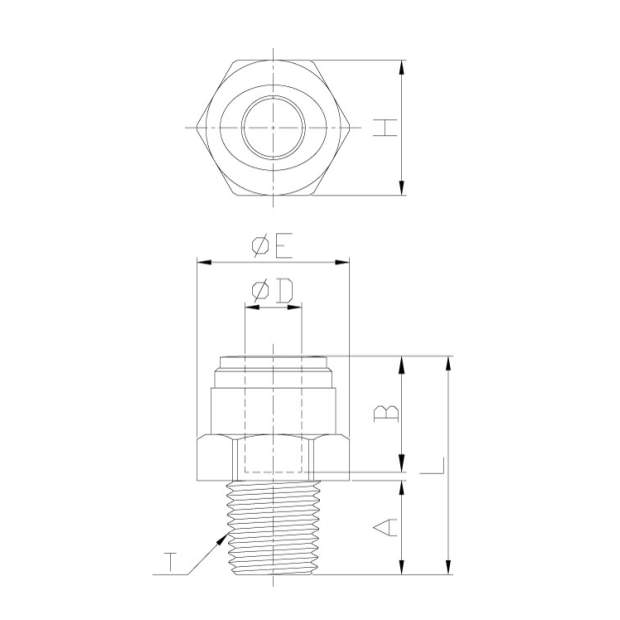

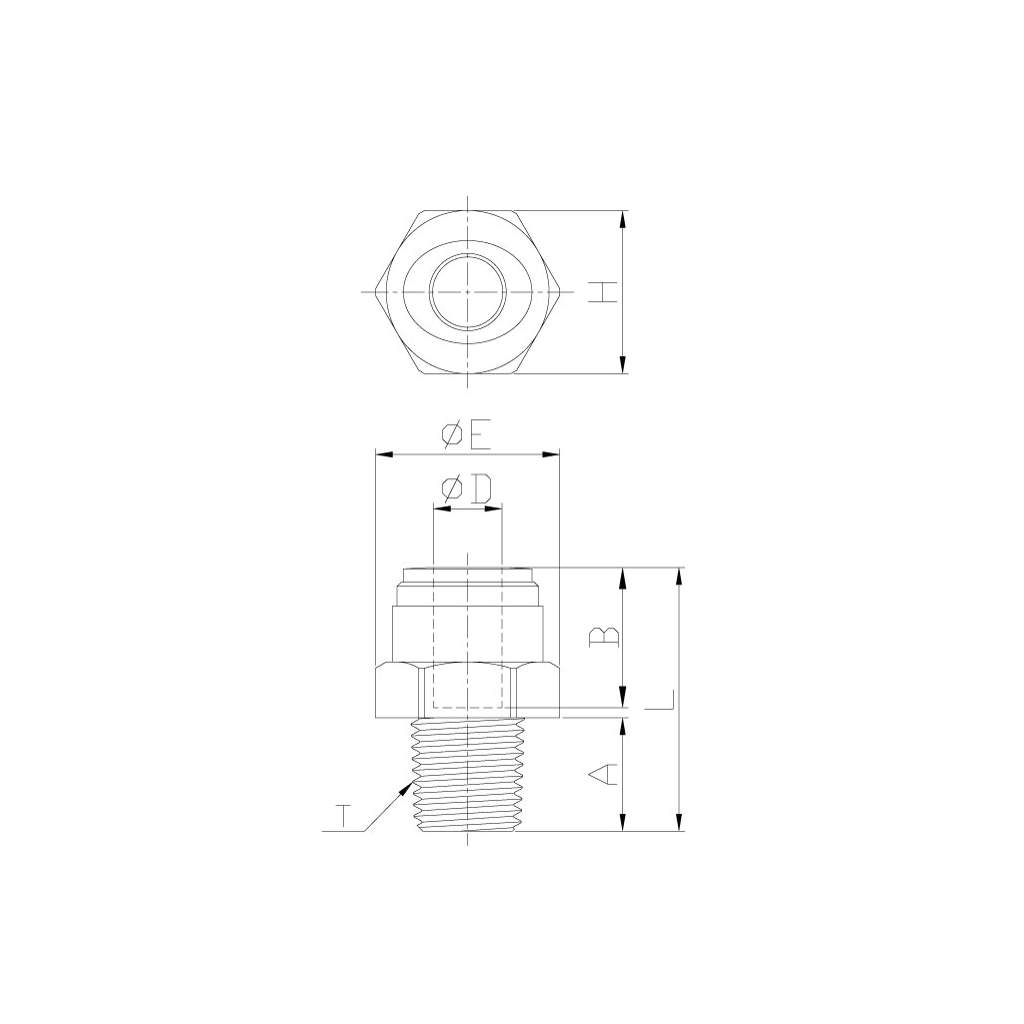

| Varianten: | ØD | T (BSPT) | A | B | ØE | H | L | Gewicht |
|---|---|---|---|---|---|---|---|---|
| HPC04R01B | 4mm | R1/8 Zoll | 9,1mm | 14,7mm | 18,5mm | 17,0mm | 26,0mm | 4,1g |
| HPC06R01B | 6mm | R1/8 Zoll | 9,1mm | 16,1mm | 18,5mm | 17,0mm | 26,2mm | 3,9g |
| HPC06R02B | 6mm | R1/4 Zoll | 13,1mm | 16,1mm | 18,5mm | 17,0mm | 26,7mm | 4,2g |
| HPC06R03B | 6mm | R3/8 Zoll | 13,5mm | 16,1mm | 21,0mm | 19,0mm | 26,6mm | 5,9g |
| HPC06R04B | 6mm | R1/2 Zoll | 16,3mm | 16,1mm | 24,4mm | 22,0mm | 29,7mm | 9,1g |
| HPC08R01B | 8mm | R1/8 Zoll | 9,1mm | 17,5mm | 21,0mm | 19,0mm | 28,1mm | 5,2g |
| HPC08R02B | 8mm | R1/4 Zoll | 13,1mm | 17,5mm | 21,0mm | 19,0mm | 30,6mm | 5,8g |
| HPC08R03B | 8mm | R3/8 Zoll | 13,5mm | 17,5mm | 21,0mm | 19,0mm | 27,0mm | 5,7g |
| HPC10R02B | 10mm | R1/4 Zoll | 13,1mm | 20,1mm | 21,0mm | 19,0mm | 36,0mm | 7,9g |
| HPC10R03B | 10mm | R3/8 Zoll | 13,5mm | 20,1mm | 23,2mm | 21,0mm | 28,8mm | 6,7g |
| HPC10R04B | 10mm | R1/2 Zoll | 16,3mm | 20,1mm | 24,4mm | 22,0mm | 32,1mm | 9,6g |
| HPC12R03B | 12mm | R3/8 Zoll | 13,5mm | 24,7mm | 26,5mm | 24,0mm | 32,2mm | 8,9g |
| HPC12R04B | 12mm | R1/2 Zoll | 16,3mm | 24,7mm | 26,5mm | 24,0mm | 34,3mm | 11,0g |
Herstellerinformationen:
CDC Pneumatics
30, Secheon-ro 1-gil, Dasa-eup
Dalseong-gun, Daegu
Republic of Korea
E-Mail: chumdancoupler@gmail.com
Telefon: +82 53 353 7501
Internet: https://fluidfit.net/eng/
Kontakt innerhalb EU:
Wassertechnik PRO
Queerenring 10B
04626 Schmölln
Deutschland
Telefon: +49 (0)3 44 91 - 58 16 11
E-Mail: post@wassertechnik.pro
| Hersteller: | FLUIDFIT |
| Kategorie: | Fluidtechnik |
| Artikelnummer: | SVM100100 |
