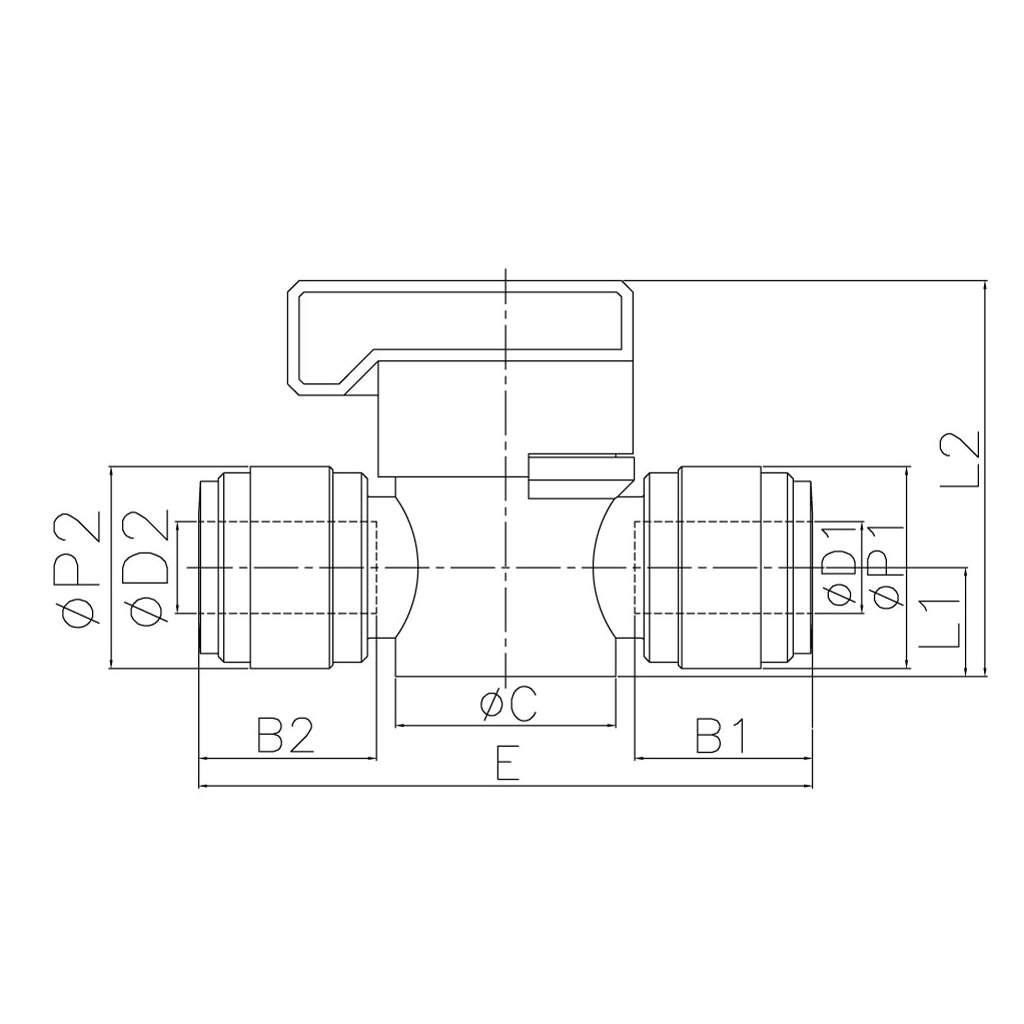

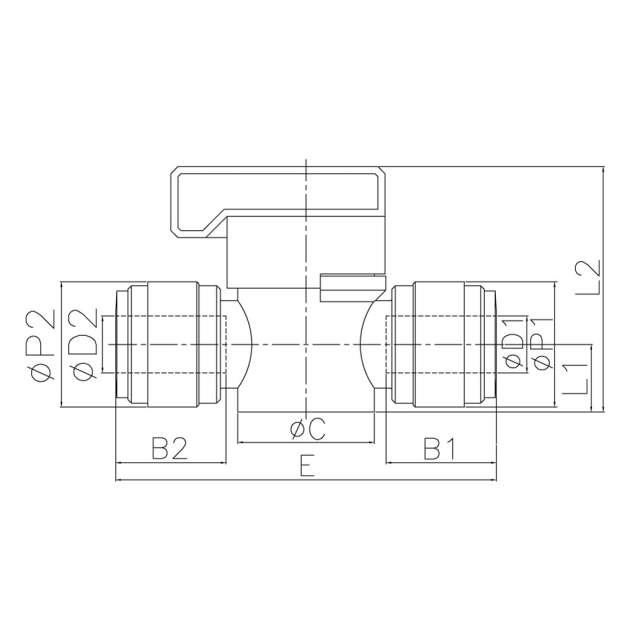

| Varianten: | ØD1 | ØD2 | B1 | B2 | ØP1 | ØP2 | L1 | L2 | E | ØC | Gewicht |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HBVU1/4-1/4B | 1/4 Zoll | 1/4 Zoll | 16,1 mm | 16,1 mm | 15,5 mm | 15,5 mm | 9,5 mm | 34,5 mm | 51,7 mm | 19,2 mm | 16,0 g |
| HBVU5/16-5/16B | 5/16 Zoll | 5/16 Zoll | 17,5 mm | 17,5 mm | 17,6 mm | 17,6 mm | 9,5 mm | 34,5 mm | 53,5 mm | 19,2 mm | 17,4 g |
| HBVU3/8-3/8B | 3/8 Zoll | 3/8 Zoll | 20,2 mm | 20,2 mm | 20,0 mm | 20,0 mm | 12,5 mm | 42,3 mm | 63,0 mm | 24,2 mm | 29,0 g |
| HBVU1/2-1/2B | 1/2 Zoll | 1/2 Zoll | 23,9 mm | 23,9 mm | 23,0 mm | 23,0 mm | 12,5 mm | 42,3 mm | 70,8 mm | 24,2 mm | 35,4 g |
Herstellerinformationen:
CDC Pneumatics
30, Secheon-ro 1-gil, Dasa-eup
Dalseong-gun, Daegu
Republic of Korea
E-Mail: chumdancoupler@gmail.com
Telefon: +82 53 353 7501
Internet: https://fluidfit.net/eng/
Kontakt innerhalb EU:
Wassertechnik PRO
Queerenring 10B
04626 Schmölln
Deutschland
Telefon: +49 (0)3 44 91 - 58 16 11
E-Mail: post@wassertechnik.pro
| Hersteller: | FLUIDFIT |
| Kategorie: | Fluidtechnik |
| Artikelnummer: | SVH100400 |
