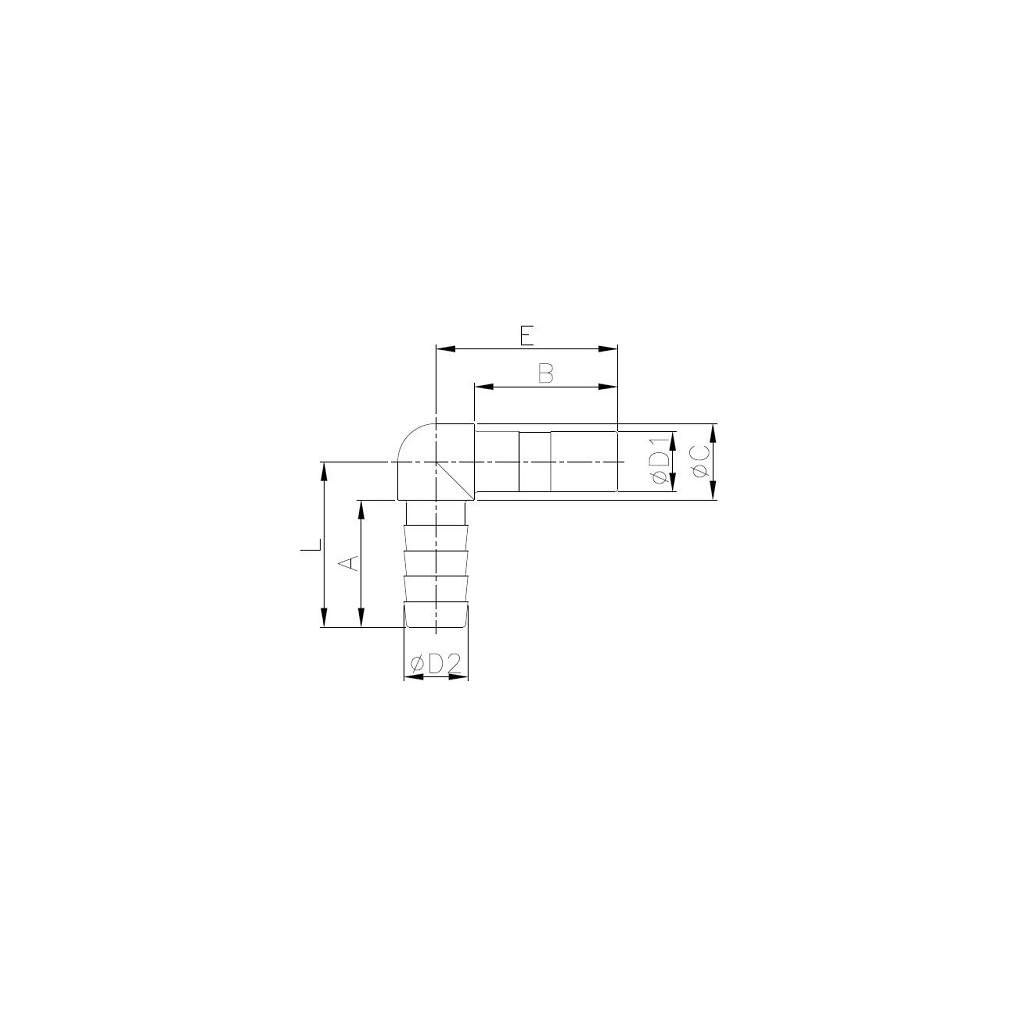

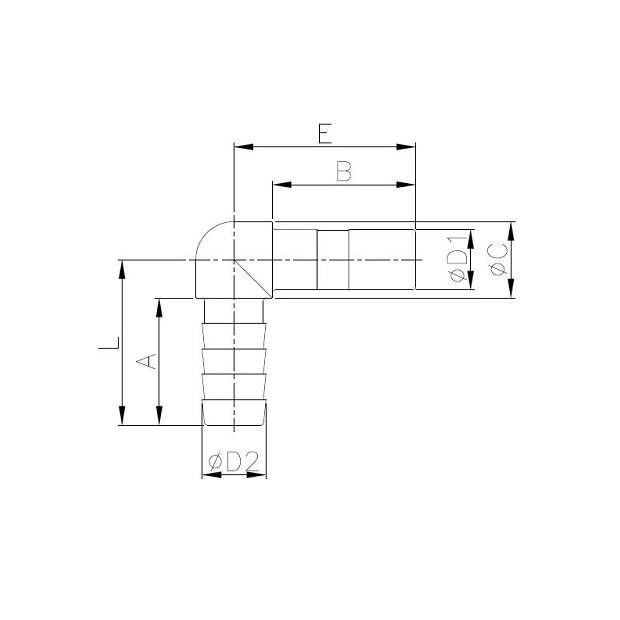

Varianten und Abmessungen:
-
HLJB3/8-5/16G: ØD1 = 3/8 Zoll, ØD2 = 5/16 Zoll, B = 8,6mm, ØC = 12,0mm, L = 24,0mm, E = 28,5mm, A = 18,0mm, B = 22,5mm, Gewicht = 3,1g
- HLJB3/8-3/8G: ØD1 = 3/8 Zoll, ØD2 = 3/8 Zoll, B = 10,0mm, ØC = 12,0mm, L = 26,0mm, E = 28,5mm, A = 20,0mm, B = 22,5mm, Gewicht = 3,3g
| Hersteller: | FLUIDFIT |
| Kategorie: | Fluidtechnik |
| Artikelnummer: | SVZ100920 |
