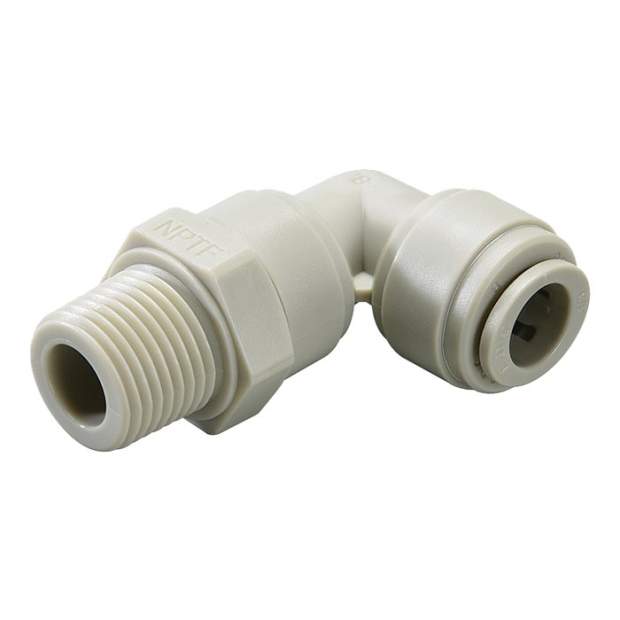

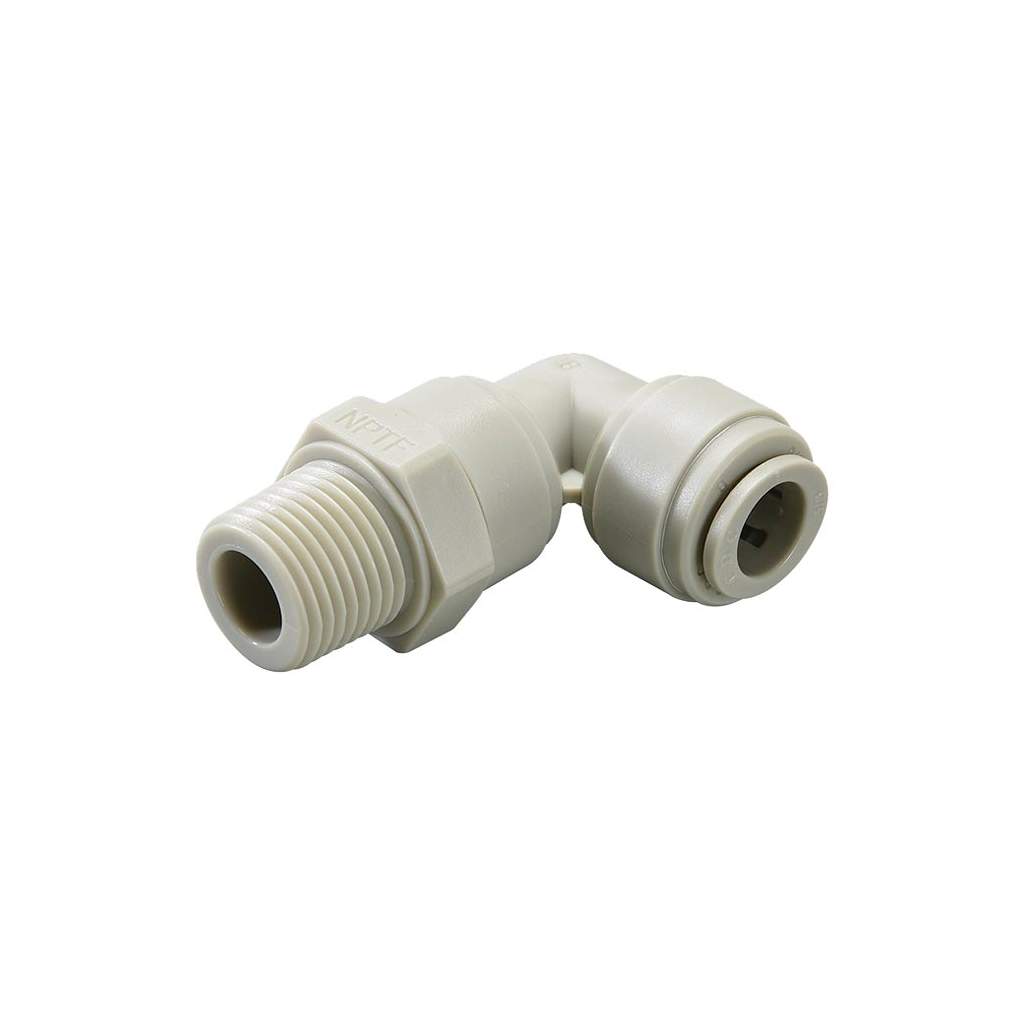

HRPL-N Winkel-Einschraub-Verbinder NPTF-Kegelgewinde zöllige Steckverbindung

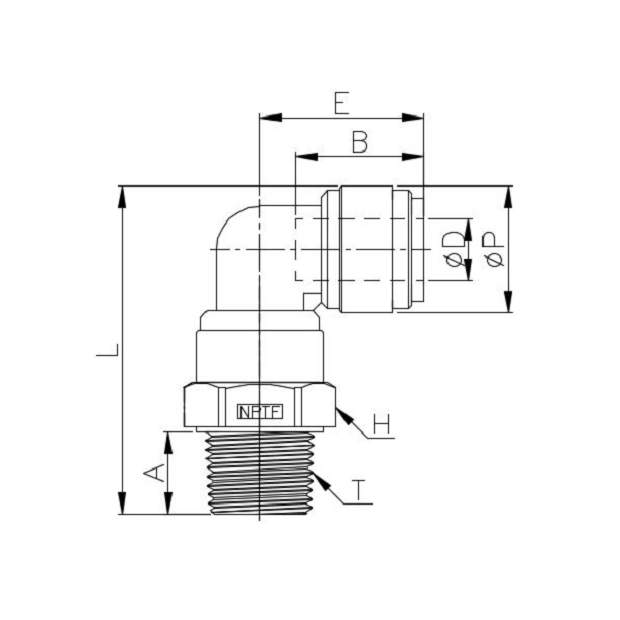

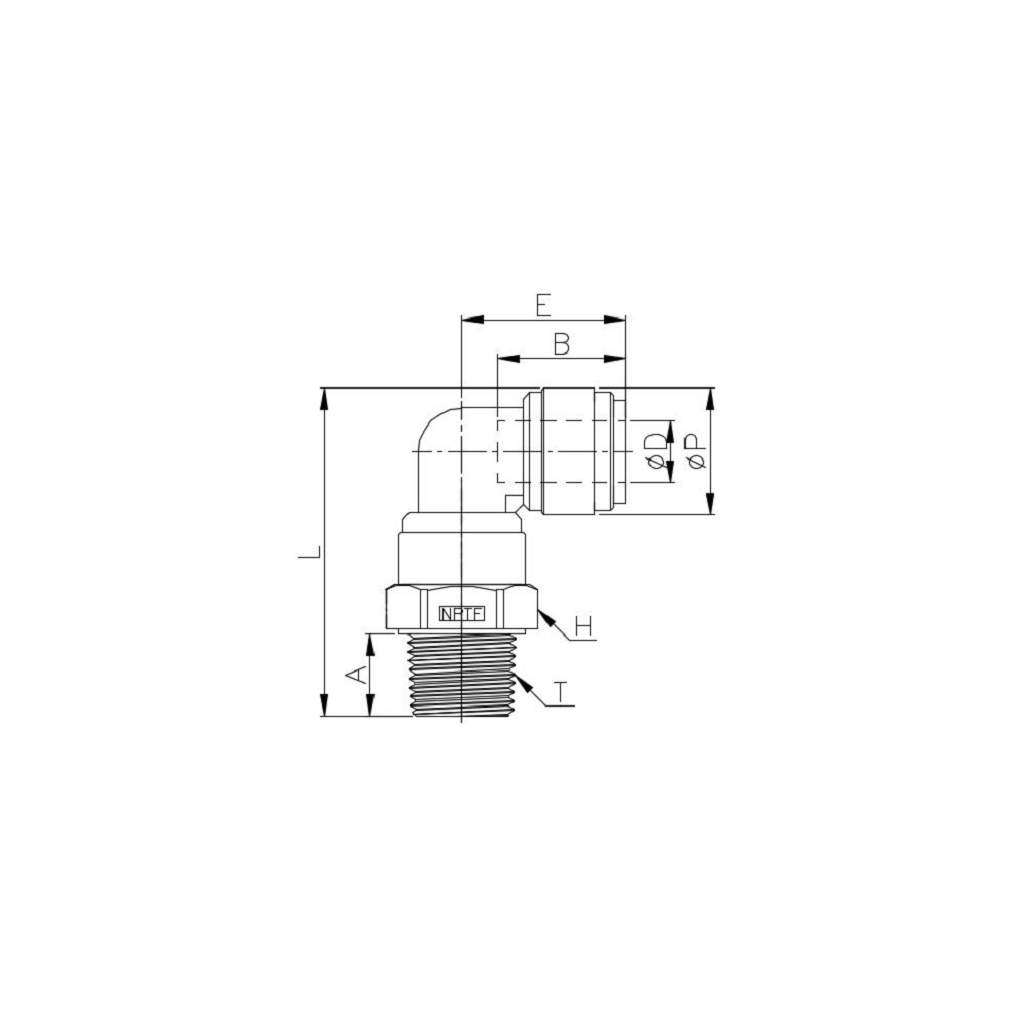

Varianten und Abmessungen:

• HRPL5/32-N01G: ØD = 5/32 Zoll, T (NPTF) = N1/8 Zoll, ØP = 13,2mm, A = 9,1mm, B = 14,7mm, E = 17,9mm, H = 15,8mm (5/8 Zoll), L = 29,7mm, Gewicht = 6,4g

  ---

• HRPL5/32-N02G: ØD = 5/32 Zoll, T (NPTF) = N1/4 Zoll, ØP = 13,2mm, A = 13,2mm, B = 14,7mm, E = 17,9mm, H = 15,8mm (5/8 Zoll), L = 33,8mm, Gewicht = 7,2g

  ---

• HPRL1/4-N01G: ØD = 1/4 Zoll, T (NPTF) = N1/8 Zoll, ØP = 15,5mm, A = 9,1mm, B = 16,9mm, E = 21,0mm, H = 17,46mm (11/16 Zoll), L = 32,8mm, Gewicht = 8,2g

  ---

• HPRL1/4-N02G: ØD = 1/4 Zoll, T (NPTF) = N1/4 Zoll, ØP = 15,5mm, A = 13,2mm, B = 16,9mm, E = 21,0mm, H = 17,46mm (11/16 Zoll), L = 36,9mm, Gewicht = 8,9g

  ---

• HPRL5/16-N01G: ØD = 5/16 Zoll, T (NPTF) = N1/8 Zoll, ØP = 17,6mm, A = 9,1mm, B = 17,5mm, E = 21,9mm, H = 19,0mm (3/4 Zoll), L = 33,8mm, Gewicht = 10,5g

  ---

• HPRL5/16-N02G: ØD = 5/16 Zoll, T (NPTF) = N1/4 Zoll, ØP = 17,6mm, A = 13,2mm, B = 17,5mm, E = 21,9mm, H = 19,0mm (3/4 Zoll), L = 37,9mm, Gewicht = 11,3g

  ---

• HPRL5/16-N03G: ØD = 5/16 Zoll, T (NPTF) = N3/8 Zoll, ØP = 17,6mm, A = 13,8mm, B = 17,5mm, E = 21,9mm, H = 19,0mm (3/4 Zoll), L = 38,5mm, Gewicht = 12,3g

  ---

• HPRL3/8-N02G: ØD = 3/8 Zoll, T (NPTF) = N1/4 Zoll, ØP = 20,0mm, A = 13,2mm, B = 20,2mm, E = 25,9mm, H = 21,4mm (27/32 Zoll), L = 41,9mm, Gewicht = 15,5g

  ---

• HPRL3/8-N03G: ØD = 3/8 Zoll, T (NPTF) = N3/8 Zoll, ØP = 20,0mm, A = 13,0mm, B = 20,2mm, E = 25,9mm, H = 21,4mm (27/32 Zoll), L = 41,8mm, Gewicht = 16,4g

  ---

• HPRL1/2-N03G: ØD = 1/2 Zoll, T (NPTF) = N3/8 Zoll, ØP = 23,0mm, A = 13,8mm, B = 25,1mm, E = 31,9mm, H = 23,8mm (15/16 Zoll), L = 48,5mm, Gewicht = 23,3g

  ---

• HPRL1/2-N04G: ØD = 1/2 Zoll, T (NPTF) = N1/2 Zoll, ØP = 23,0mm, A = 17,8mm, B = 25,1mm, E = 31,9mm, H = 23,8mm (15/16 Zoll), L = 51,5mm, Gewicht = 25,9g
