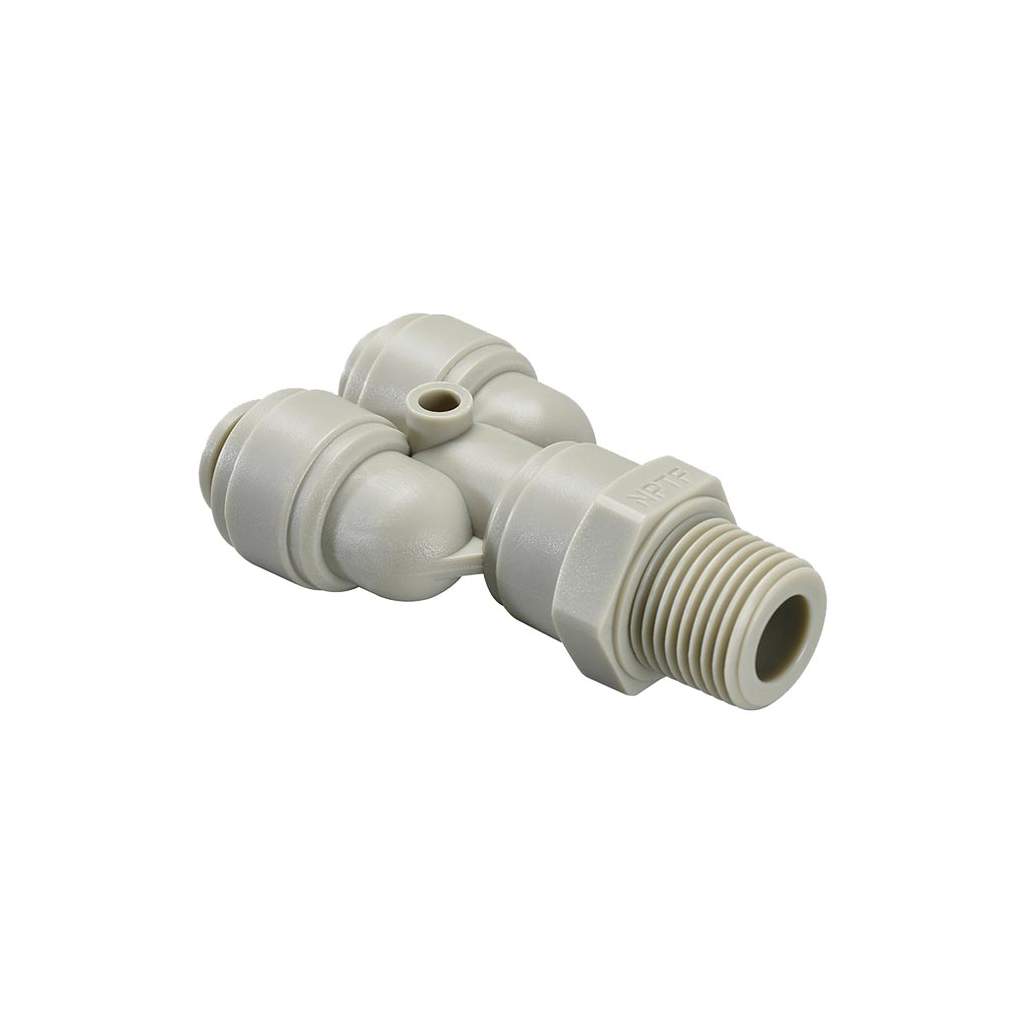

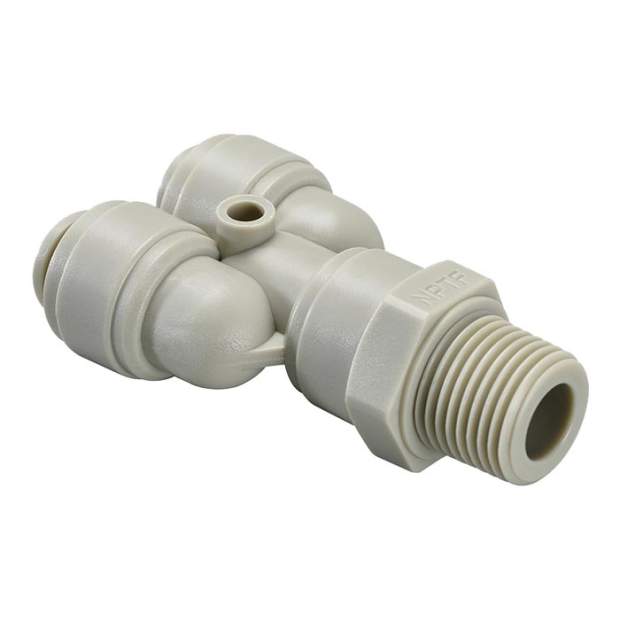

HRWT-N Y-Einschraub-Verbinder NPTF-Kegelgewinde zöllige Steckverbindung

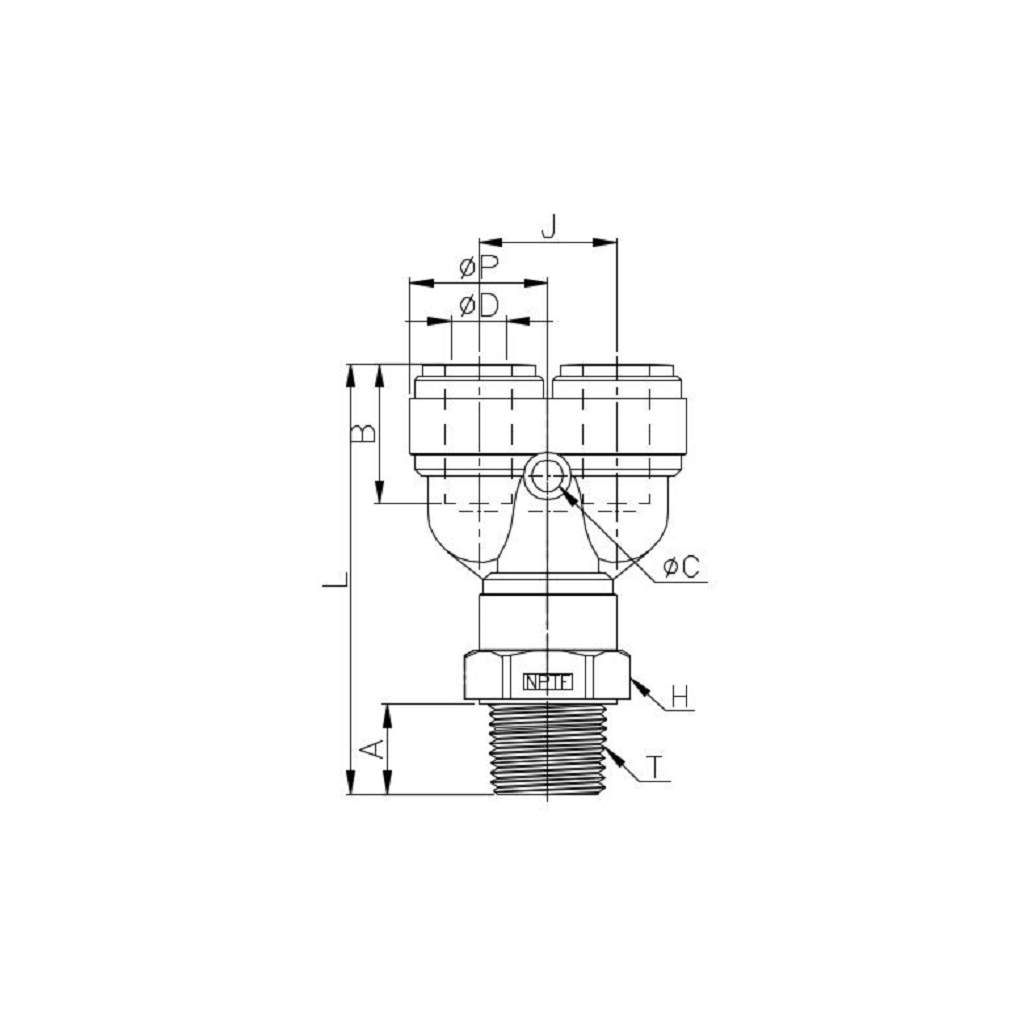

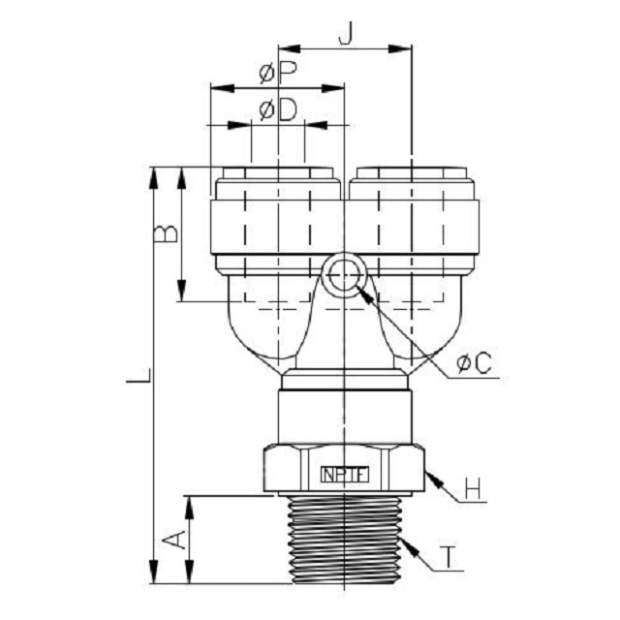

Varianten und Abmessungen:

• HRWT5/32-N01G: ØD = 5/32 Zoll, T (NPTF) = N1/8 Zoll, ØP = 13,8mm, A = 9,1mm, B = 14,7mm, J = 13,5mm, H = 15,8mm (5/8 Zoll), L = 36,8mm, ØD = 3,3mm, Gewicht = 9,1g

  ---

• HRWT5/32-N02G: ØD = 5/32 Zoll, T (NPTF) = N1/4 Zoll, ØP = 13,8mm, A = 13,2mm, B = 14,7mm, J = 13,5mm, H = 15,8mm (5/8 Zoll), L = 49,6mm, ØD = 3,3mm, Gewicht = 9,9g

  ---

• HRWT1/4-N01G: ØD = 1/4 Zoll, T (NPTF) = N1/8 Zoll, ØP = 15,5mm, A = 9,1mm, B = 16,9mm, J = 15,5mm, H = 17,46mm (11/16 Zoll), L = 50,6mm, ØD = 3,3mm, Gewicht = 11,0g

  ---

• HRWT1/4-N02G: ØD = 1/4 Zoll, T (NPTF) = N1/4 Zoll, ØP = 15,5mm, A = 13,2mm, B = 16,9mm, J = 15,5mm, H = 17,46mm (11/16 Zoll), L = 54,7mm, ØD = 3,3mm, Gewicht = 12,2g

  ---

• HRWT5/16-N01G: ØD = 5/16 Zoll, T (NPTF) = N1/8 Zoll, ØP = 17,6mm, A = 9,1mm, B = 17,5mm, J = 17,6mm, H = 19,0mm (3/4 Zoll), L = 52,9mm, ØD = 4,5mm, Gewicht = 14,8g

  ---

• HRWT5/16-N02G: ØD = 5/16 Zoll, T (NPTF) = N1/4 Zoll, ØP = 17,6mm, A = 13,2mm, B = 17,5mm, J = 17,6mm, H = 19,0mm (3/4 Zoll), L = 57,0mm, ØD = 4,5mm, Gewicht = 15,6g

  ---

• HRWT5/16-N03G: ØD = 5/16 Zoll, T (NPTF) = N3/8 Zoll, ØP = 17,6mm, A = 13,8mm, B = 17,5mm, J = 17,6mm, H = 19,0mm (3/4 Zoll), L = 57,6mm, ØD = 4,5mm, Gewicht = 16,6g

  ---

• HRWT3/8-N02G: ØD = 3/8 Zoll, T (NPTF) = N1/4 Zoll, ØP = 20,0mm, A = 13,2mm, B = 20,2mm, J = 20,0mm, H = 21,4mm (27/32 Zoll), L = 62,4mm, ØD = 4,5mm, Gewicht = 21,2g

  ---

• HRWT3/8-N03G: ØD = 3/8 Zoll, T (NPTF) = N3/8 Zoll, ØP = 20,0mm, A = 13,0mm, B = 20,2mm, J = 20,0mm, H = 21,4mm (27/32 Zoll), L = 62,3mm, ØD = 4,5mm, Gewicht = 21,7g

  ---

• HRWT1/2-N03G: ØD = 1/2 Zoll, T (NPTF) = N3/8 Zoll, ØP = 23,0mm, A = 13,8mm, B = 25,1mm, J = 23,0mm, H = 23,8mm (15/16 Zoll), L = 73,4mm, ØD = 4,5mm, Gewicht = 31,7g

  ---

• HRWT1/2-N04G: ØD = 1/2 Zoll, T (NPTF) = N1/2 Zoll, ØP = 23,0mm, A = 17,8mm, B = 25,1mm, J = 23,0mm, H = 23,8mm (15/16 Zoll), L = 76,4mm, ØD = 4,5mm, Gewicht = 34,3g
